MacBook Air M2 No Power: The A2681 Board That Blew Itself Up, Twice

A 2022 MacBook Air 13" (M2, A2681) landed on my bench dead, no power at all. No liquid, no drops, nothing the owner did wrong. It just stopped.

What I Found

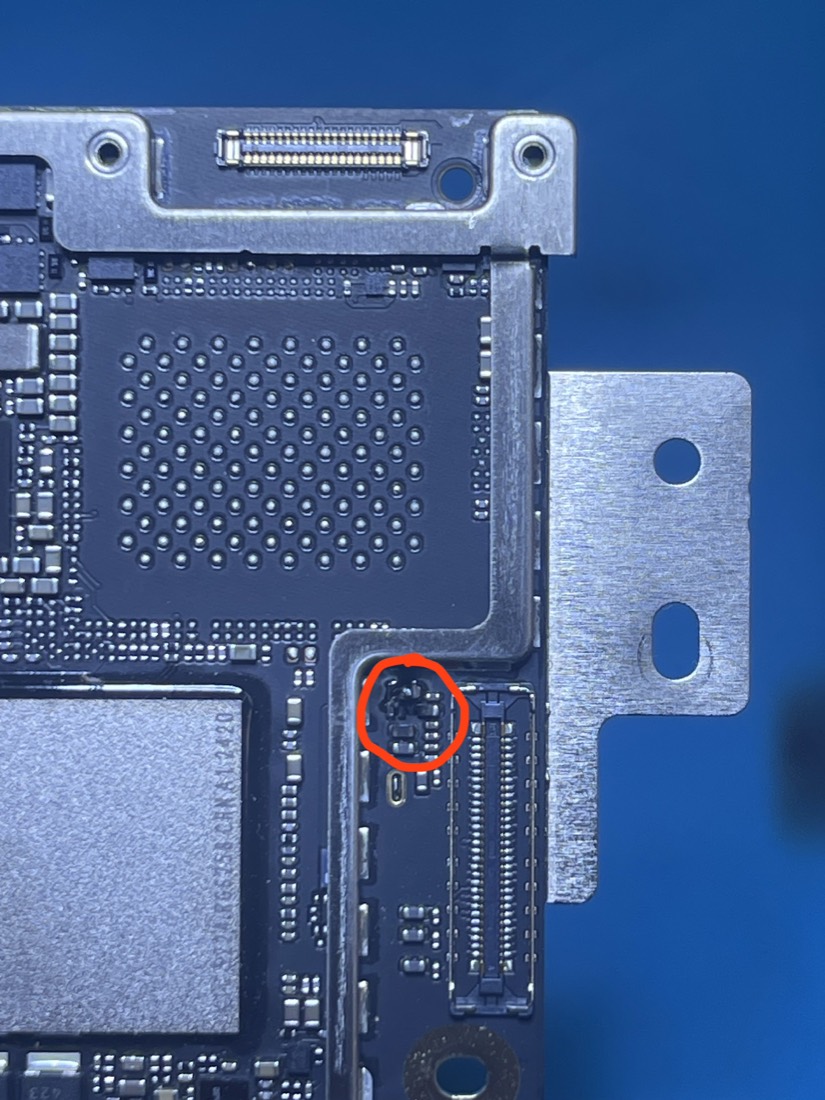

I pulled the logic board and there it was: a capacitor had spontaneously exploded, frying the whole bank of three caps next to it, blasting a hole into the board, and leaving charred black burn marks around the spot. Char like that isn’t a part quietly wearing out, it’s the signature of an electrical short, an arc to ground.

It happened on the power line that runs to the FPC connector tying the main board to the daughter board, the path that carries the keyboard and trackpad. With that line blown open, the Air had no way to power up.

The Repair

Here’s where most shops, and Apple, stop: they call this a logic-board replacement. On an M2 Air that’s $700+, and because the storage is soldered to the board, a board swap takes your data with it.

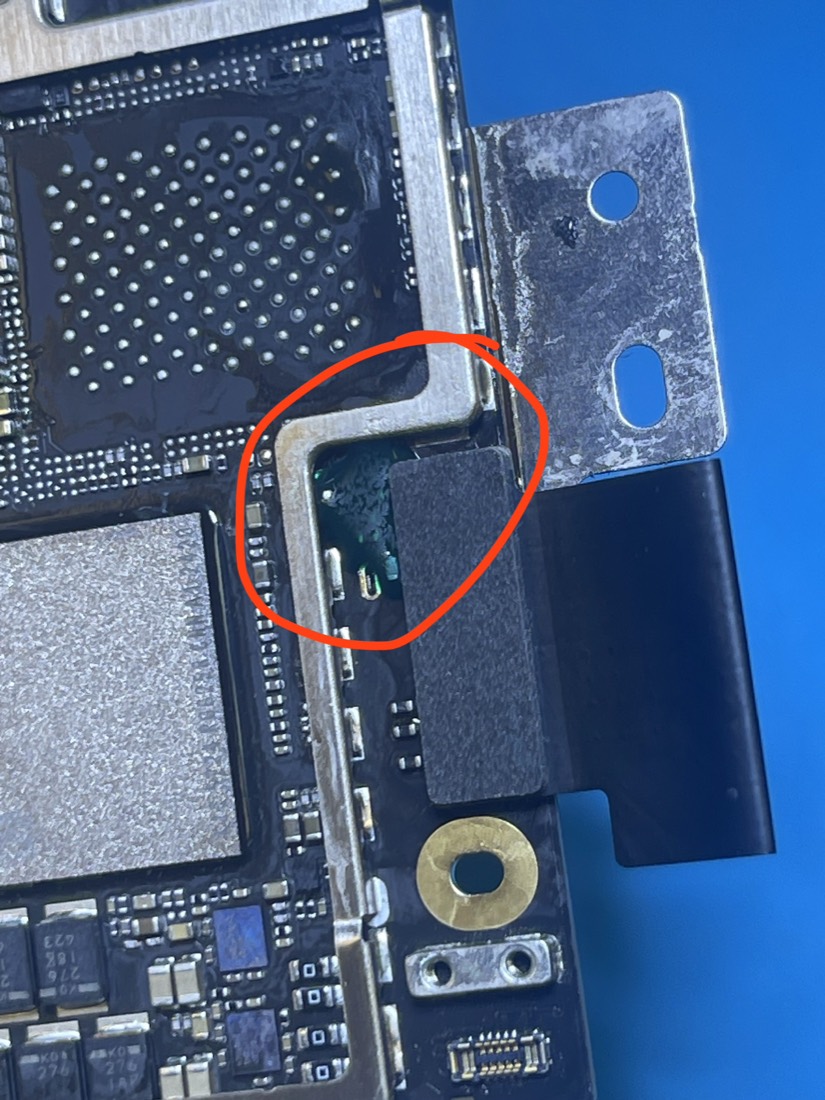

I don’t do that if I can fix the actual failure. I ran a new line along the one trace path that still had room, bridged the three capacitors to restore the line voltage, and sealed the repair under green, UV-cured epoxy to protect it. Board lives, data intact.

The Part That Bugs Me, a Suspicion, Not a Verdict

This is the second A2681 I’ve seen do this. Same board, same exact spot, same self-destruct, no abuse on either. Once is bad luck. Twice in the identical location makes me look at the design instead of the owner.

My working theory, and I want to be clear this is a suspicion I’m still chasing, not a proven fact: the A2681 has a grounded metal shield sitting close to that power line. A live positive and a ground that close will, under the right conditions, short or arc across, exactly the kind of event that cooks caps and leaves char behind. The burn marks fit. But I haven’t fully confirmed the mechanism, so I’m holding it as a hypothesis, not a conclusion.

I’m watching it closely. If a third or fourth comes through with the same fingerprint, this stops being a hunch and becomes a real engineering concern, the kind of thing Apple should know about. For now, I document every one I see.

Why This Matters to You

If your M2 Air won’t turn on and nothing was spilled, don’t let “the board’s dead, replace it” be the end of the conversation. A lot of “dead” boards have one specific failed component, and fixing that component saves the board, your data, and a few hundred dollars. That’s the whole reason we do board-level repair.
